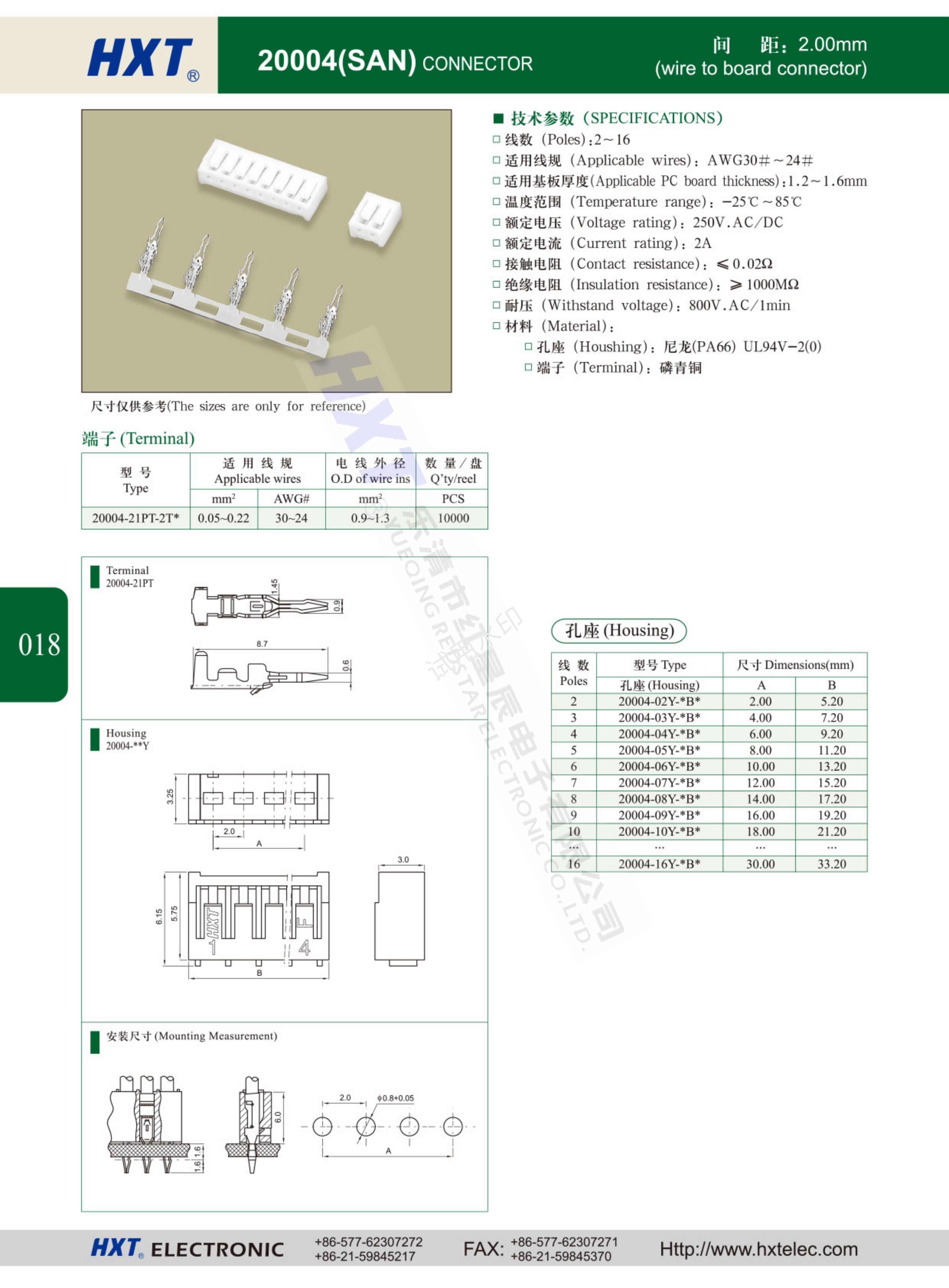

■技術參數(SPECIFICATIONS)
口線數(Poles):2~16
口適用線規(guī)(Applicable wires):AWG30#~24#
口適用基板厚度(Applicable PC board thickness):1.2~1.6mm
口溫度范圍(Temperature range):-25℃~85℃
口額定電壓(Voltage rating):250V.AC/DC
口額定電流(Current rating):2A
口接觸電阻(Contact resistance):≤0.022
口絕緣電阻(Insulation resistance):≥1000MΩ
口耐壓(Withstand voltage):800V.AC/1min
口材料(Material):

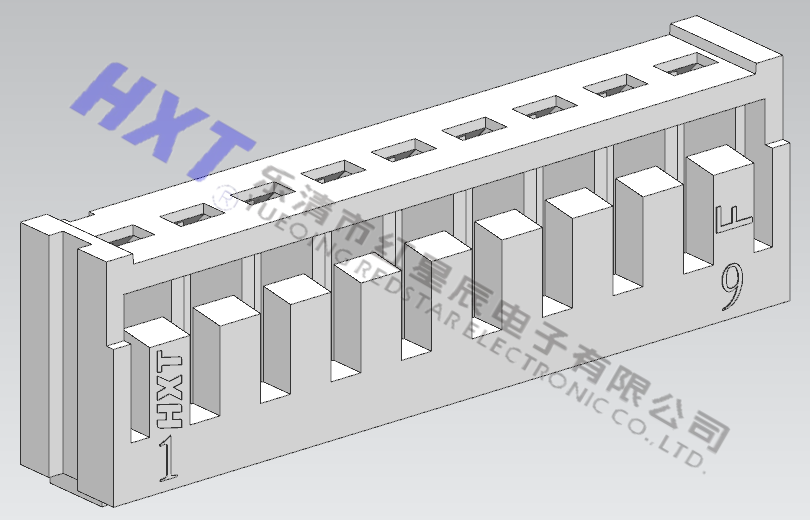

口孔座(Houshing):尼龍(PA66)UL94V-2(0)

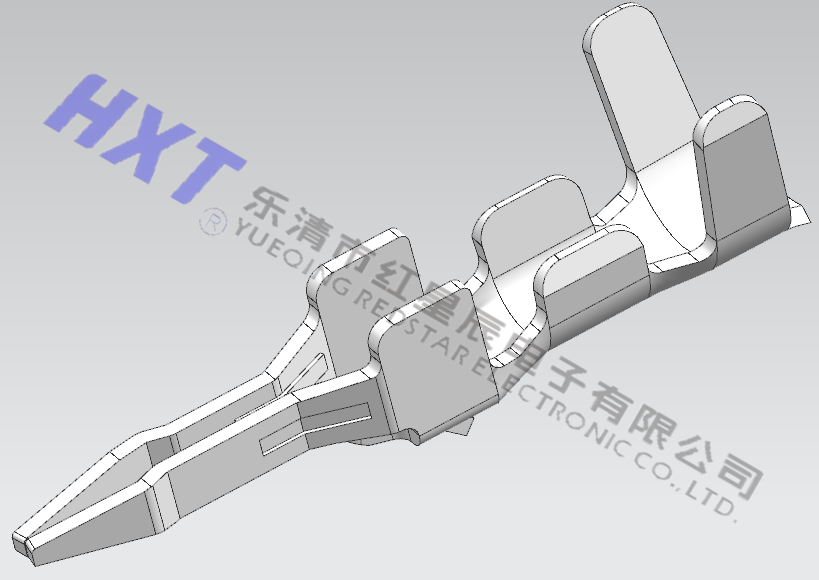

口端子(Terminal):磷青銅
