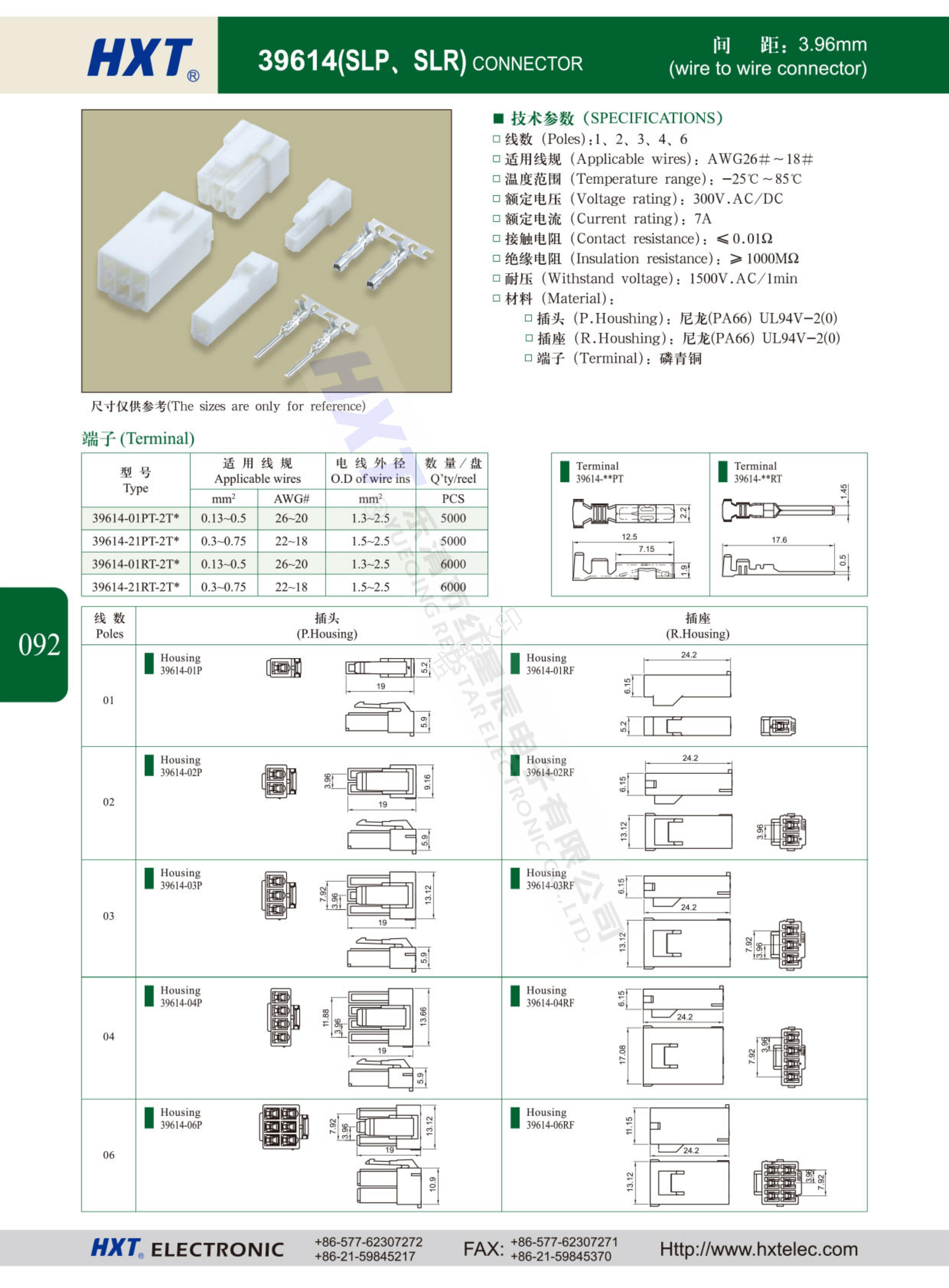

■技術(shù)參數(shù)(SPECIFICATIONS)
口線數(shù)(Poles):1、2、3、4、6
口適用線規(guī)(Applicable wires):AWG26#~18#
口溫度范圍(Temperature range):-25℃~85℃
口額定電壓(Voltage rating):300V.AC/DC
口額定電流(Current rating):7A
口接觸電阻(Contact resistance):≤0.01Ω
口絕緣電阻(Insulation resistance):≥1000MΩ
口耐壓(Withstand voltage):1500V.AC/1min
口材料(Material):

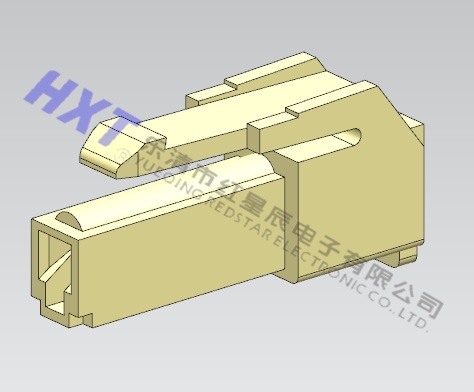

口插頭(P.Houshing):尼龍(PA66)UL94V-2(0)

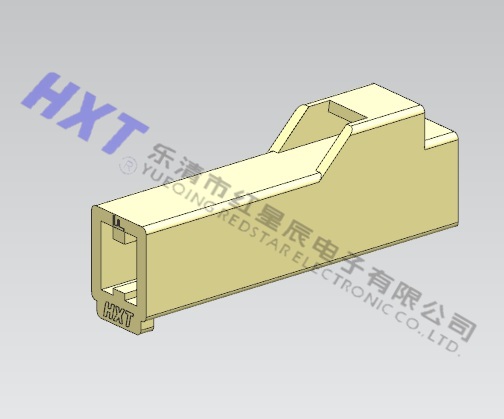

口插座(R.Houshing):尼龍(PA66)UL94V-2(0)

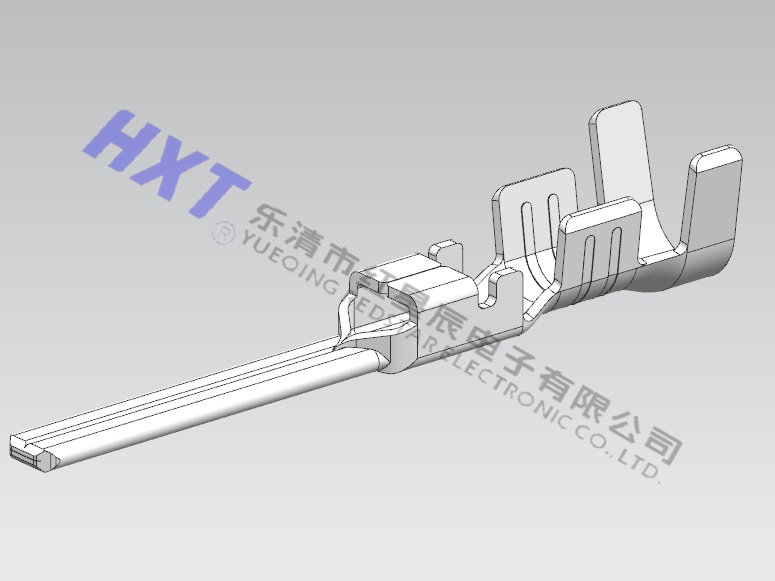

口端子(Terminal):磷青銅
